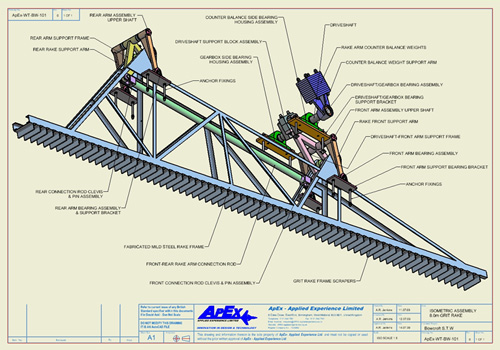

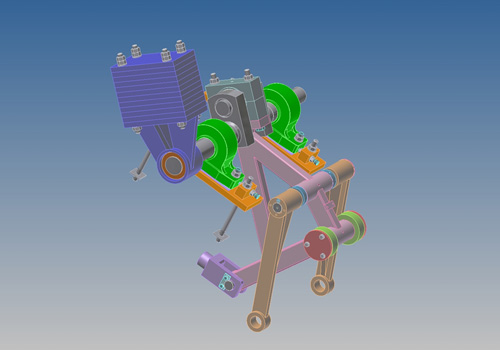

This particular project was to convert an existing design from paper / 2D CAD drawings to a full solid model. The design comprises of a combination of standard proprietary components, fabricated parts and machined components. The whole assembly is mounted in a pre-designed civil chamber. The complete new model of the mechanism was also used to create a general assembly drawing complete with an associated bill of material. All new component parts were also detailed to separate drawings as required.
The conversion project was undertaken within 7 days.

Machine Design
